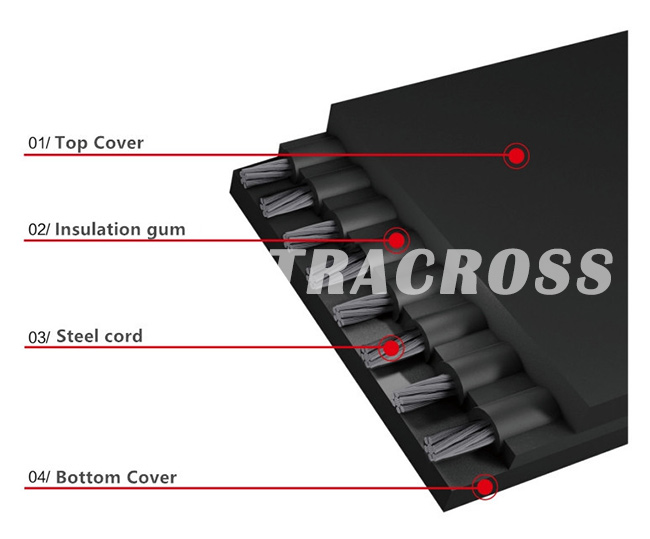

WIRE ROPE CORE CONVEYOR BELT
Feature：
For coal mines adopts an open-type steel wire rope, allowing the rubber to better penetrate into the gaps of the steel wire rope, not only enhances the corrosion resistance but also improves the bonding strength, ensuring the dynamic fatigue resistance of the conveyor belt and extending working life. The belts are widely used in coal, mining, port, gold management, power plant and other places that require long-distance and high-speed materials to convey materials.
Type:
1.ST general-purpose steel wire rope conveyor belt
2.ST steel wire rope conveyor belt
3.ST/S the steel wire rope core flame-retardant conveyor belt
Type |
630 |
800 |
1000 |
1250 |
1400 |
1600 |
1800 |
2000 |
2250 |
2500 |
2800 |
3150 |
3500 |
4000 |
4500 |
5000 |
5400 |
|
Min.Tensile Strength(N/mm) |
630 |
800 |
1000 |
1250 |
1400 |
1600 |
1800 |
2000 |
2250 |
2500 |
2800 |
3150 |
3500 |
4000 |
4500 |
5000 |
5400 |
|
Max. diameter of the steel wire rope(mm) |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
5.0 |
5.6 |
6.0 |
5.6 |
7.2 |
7.2 |
8.1 |
8.6 |
8.9 |
9.7 |
10.9 |
11.3 |
|
Min.Breaking Load |
7.0 |
8.9 |
12.9 |
16.1 |
20.6 |
20.6 |
25.5 |
25.6 |
26.2 |
40.0 |
39.6 |
50.5 |
56.0 |
63.5 |
76.3 |
91.0 |
98.2 |
|
Rope interval (mm) |
10.0 |
10.0 |
12.0 |
12.0 |
14.0 |
12.0 |
13.5 |
12.0 |
11.0 |
15.0 |
13.5 |
15.0 |
15.0 |
15.0 |
16.0 |
17.0 |
17.0 |
|
Min. Cover Rubber Thickness (mm) |
4.0 |
4.0 |
4.0 |
4.0 |
4.0 |
4.0 |
4.0 |
4.0 |
4.0 |
5.0 |
5.0 |
5.5 |
6.0 |
6.5 |
7.0 |
7.5 |
8.0 |
|
Belt Width(mm) |
Limit D eviation(mm) |
Number of Ropes |
||||||||||||||||
800 |
+10/-8 |
75 |
75 |
63 |
63 |
55 |
63 |
57 |
63 |
69 |
50 |
57 |
50 |
50 |
51 |
48 |
45 |
45 |
1000 |
±10 |
95 |
95 |
79 |
79 |
68 |
79 |
71 |
79 |
86 |
64 |
71 |
64 |
64 |
64 |
59 |
55 |
55 |
1200 |
±10 |
113 |
113 |
94 |
94 |
82 |
94 |
85 |
94 |
104 |
76 |
85 |
76 |
77 |
77 |
71 |
66 |
66 |
1400 |
±12 |
133 |
133 |
111 |
111 |
97 |
111 |
100 |
111 |
122 |
89 |
99 |
89 |
90 |
90 |
84 |
78 |
78 |
1600 |
±12 |
151 |
151 |
126 |
126 |
111 |
126 |
114 |
126 |
140 |
101 |
114 |
101 |
104 |
104 |
96 |
90 |
90 |
1800 |
±14 |
171 |
171 |
143 |
143 |
125 |
143 |
129 |
143 |
159 |
114 |
128 |
114 |
117 |
117 |
109 |
102 |
102 |
2000 |
±14 |
191 |
191 |
159 |
159 |
139 |
159 |
144 |
159 |
177 |
128 |
143 |
128 |
130 |
130 |
121 |
113 |
113 |
2200 |
±15 |
211 |
211 |
176 |
176 |
154 |
176 |
159 |
176 |
195 |
141 |
158 |
141 |
144 |
144 |
134 |
125 |
125 |
