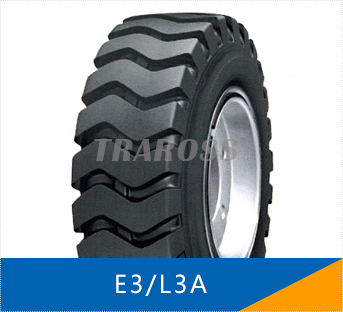

E3/L3A
1. Widely used in mining,quarry and all kinds of construction area.
2. Used for loader,excavator and construction machinery.
| Size | PR | Tread Depth | Standard Rim | Section Width | Overall Diameter | Max Load (kg) | Pressure (Kpa) | ||
| 50 Km/h | 10 Km/h | 65/50 Km/h | 10 Km/h | ||||||
| 7.50-16 | 8/10 | 10 | 6.00/G | 215 | 805 | 860 | 1120 | 530 | 530 |
| 8.25-16 | 10/12 | 11 | 6.50/H | 235 | 855 | 650 | 1360 | 210 | 420 |
| 14.00-24 | 20 | 25.5 | 10 | 375 | 1370 | 4625 | 8500 | 475 | 700 |
| 16.00-24 | 24 | 28.5 | 11.25 | 430 | 1490 | 6000 | 10600 | 650 | 475 |
| 14.00-25 | 20 | 25.5 | 10 | 366 | 1318 | 5150 | 9500 | 575 | 850 |
| 15.5-25 | 16 | 24.5 | 12.00/1.3 | 395 | 1275 | 3850 | 6750 | 325 | 525 |
| 16.00-25 | 28 | 28 | 11.25/2.0 | 430 | 1490 | 6700 | 11500 | 575 | 750 |
| 18.00-25 | 36 | 32 | 13.00/2.5 | 495 | 1615 | 9250 | 16000 | 625 | 850 |
| 17.5-25 | 20 | 26 | 14.00/1.5 | 445 | 1350 | 5000 | 8250 | 400 | 575 |
| 20.5-25 | 20 | 30 | 17.00/2.0 | 520 | 1490 | 6000 | 9500 | 325 | 450 |
| 23.5-25 | 20 | 32 | 19.50/2.5 | 595 | 1615 | 7300 | 10900 | 300 | 375 |
| 26.5-25 | 24 | 36 | 22.00/3.0 | 675 | 1798 | 9250 | 14000 | 300 | 400 |
| 29.5-25 | 28 | 38 | 25.00/3.5 | 750 | 1875 | 11500 | 17500 | 325 | 425 |
| 29.5-29 | 28 | 38 | 25.00/3.5 | 750 | 1975 | 12100 | 19000 | 325 | 425 |
| 33.25-29 | 32 | 42.5 | 27.00/3.5 | 845 | 2090 | 15000 | 23600 | 325 | 450 |
| 33.25-35 | 32 | 42.5 | 27.00/3.5 | 845 | 2240 | 16000 | 25750 | 325 | 450 |
| 38 | 18000 | 28000 | 400 | 550 | |||||
| 37.25-35 | 42 | 48 | 31.00/4.0 | 945 | 2390 | 21800 | 33500 | 400 | 525 |
| 37.5-39 | 52 | 46.5 | 32.00/4.5 | 950 | 2540 | 26500 | / | 475 | / |
| 16/70-20 | 14 | 24 | 13(SDC) | 410 | 1075 | 5150 | 450 | ||
| 16/70-24 | 14 | 24.5 | 13(SDC) | 410 | 1175 | 5600 | 450 | ||
| 12.00-16 | 12 | 17 | 6.50H | 255 | 890 | 1600 | 420 | ||
| 20.5/70-16 | 14 | 19 | 10.00G | 335 | 910 | / | 1600 | / | 280 |
